Talking about the difference between creativity and practical production of water cups?

Recently, editor encountered a project. Due to the urgency of time, the customer has relatively clear requirements.Based on my own creative foundation, I tried to draw sketches by myself.Fortunately, the sketch is favored by the customer, and the structural design needs to be carried out according to the sketch, so as to finally complete the development of the product.Although there are sketches, there is still a long way to go before the product is finally successfully developed.

Once you have a sketch, you need to ask a professional engineer to make a 3D file based on the sketch.When the 3D file comes out, you can see what is unreasonable in the sketch design and need to be corrected, and then make the product shape reasonable.After completing this step, I have a profound experience.Because I have worked in the water cup industry for a long time, I think I have a lot of experience in each production process and the degree of process realization.

Therefore, when drawing sketches, try to avoid the pits that cannot be realized in production, try to make the design plan as simple as possible, and do not have too many production processes.However, there are still contradictions between creativity and practice.It is inconvenient for the editor to disclose the specific place, because the design confidentiality agreement was signed with the customer, so the editor can only tell the reason. The creative shape has become a design problem for the project.

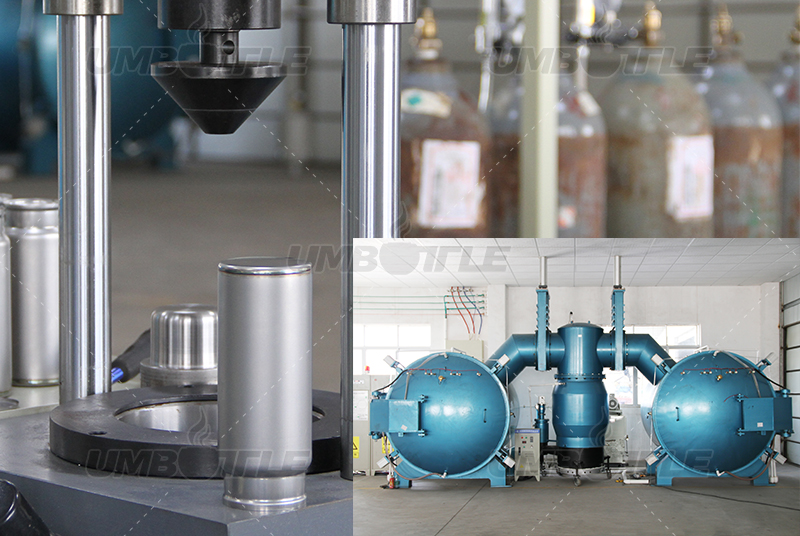

Taking the stainless steel water cup as an example, except for the detailed processes such as polishing and trimming, the major production processes are currently the same in each factory, such as laser welding, water swelling, stretching, water swelling, etc.Through these processes, the main structure and shape of the water cup are completed, and the creativity is mainly the shape creativity and functional creativity.

Functional creativity can be accomplished through structural adjustment, but styling creativity is the most likely to cause the vision to be disconnected from reality.Over the years, the editor has received many projects in the world with their own styling creativity to discuss cooperation.If the reason for product creativity cannot be realized, functional creativity accounts for about 30%, while styling creativity accounts for 70%.

The main reason is the lack of understanding of the production process, especially the production characteristics and production limits of each process.For example, some customers will continue to thicken the thickness of the shape of the lid in order to make the lid of the water cup stronger, but the lid is often made of plastic material PP.The thicker the PP material in production, the easier it is to shrink.

In this way, there will be a big gap between the final product and the rendering provided by the customer.Another example is that the customer does not know how to vacuum the water cup, so he will vacuumize the place where he thinks it is suitable according to the water cup scheme he designed.In light of this situation, the vacuuming process is not complete, and in serious cases, the vacuuming process cannot be carried out at all.

Various three-dimensional effects are designed on the surface of the water cup, and it is hoped that the surface of the stainless steel water cup can be realized by stamping.This is a more common problem. For the water cup realized by the welding process, the stamping process is relatively more realized.But for the water cup that can only be achieved by stretching, the stamping process is difficult to achieve on the cup body now.

The editor will talk about one more, the design of the color of the cup body.Many customers are very interested in the design of the gradient effect of the cup body, and hope to achieve it directly through spray painting.At present, spray painting can achieve a relatively simple and relatively rough gradient effect.There is no way to achieve that kind of multi-color gradient, and it is too natural and delicate.
