Is the spraying process on the surface of the water cup just to achieve single color processing?

A few days ago, because of the order requirements, the editor visited a spraying factory that I newly met.I thought that the other party's scale and qualifications could meet the needs of this batch of orders, but it turned out that the other party actually didn't know anything about some new spraying methods, and even showed an impossible look. The editor who got it was a little dumbfounded.

Our overseas customers chose our factory to design and develop a sporty bouncing water cup.This water cup has a capacity of 600 ml and has an atmospheric shape.The cup lid is ingeniously designed, not only can it be hand-carried, but also can be conveniently hung on the bag, on the belt, and the hanging ring on the lid can reach 10 kilograms.Customers like this cup very much, and hope that through their professional analysis of the market, the surface of the cup will be sprayed with a two-color effect with excessive gradation.

The client hopes to use a thin and translucent red for the lower part of the glass and a gradient yellow for the upper part.The yellow color is also from translucent to completely solid color, and the customer adds to the design of the lid color, so that the whole water cup has a young and fashionable atmosphere and maintains the concept of healthy exercise.

The design drawing is very beautiful, but the spraying effect that I want to achieve on the surface of the cup makes it difficult for the spraying factory that I have newly recognized.The first reaction of the person in charge of the factory when he saw the drawing was that it couldn't be done by spraying and absolutely couldn't be done.When the editor will have seen other spraying methods in other factories and can achieve it, the other party still doesn't believe it.

Is it possible to spray gradient paint on the cup body? The answer is yes.The editor at the back of this order completed it in other spraying factories, and the other party did it this way. I will share the method with you.

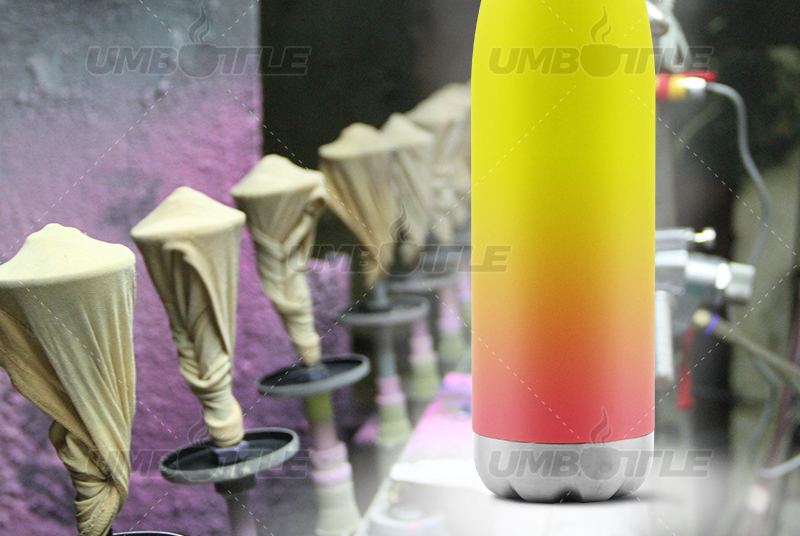

This is yellow on top and red on the bottom.The middle yellow is gradually translucent until the entire red is a translucent spray effect.The other party sprayed the translucent red first, and the translucent red was sprayed in 4 times in the automatic spraying line.The first time is a large-area spraying, and the smaller the spraying area becomes later.Finally, the dark red translucent at the bottom is realized, and the lighter the translucent red is the more upward.

Then, after baking the water cup to dry, spray on the line again, this time change the paint to yellow, spray from top to bottom, and repeat the spraying 7 times.The first large-area spraying is over half of the water cup body, and the subsequent spraying reduces the area each time until the final effect of the rendering is achieved.Therefore, the spraying process on the surface of the water cup can not only spray solid colors, but also spray lock colors with different gradient colors.
